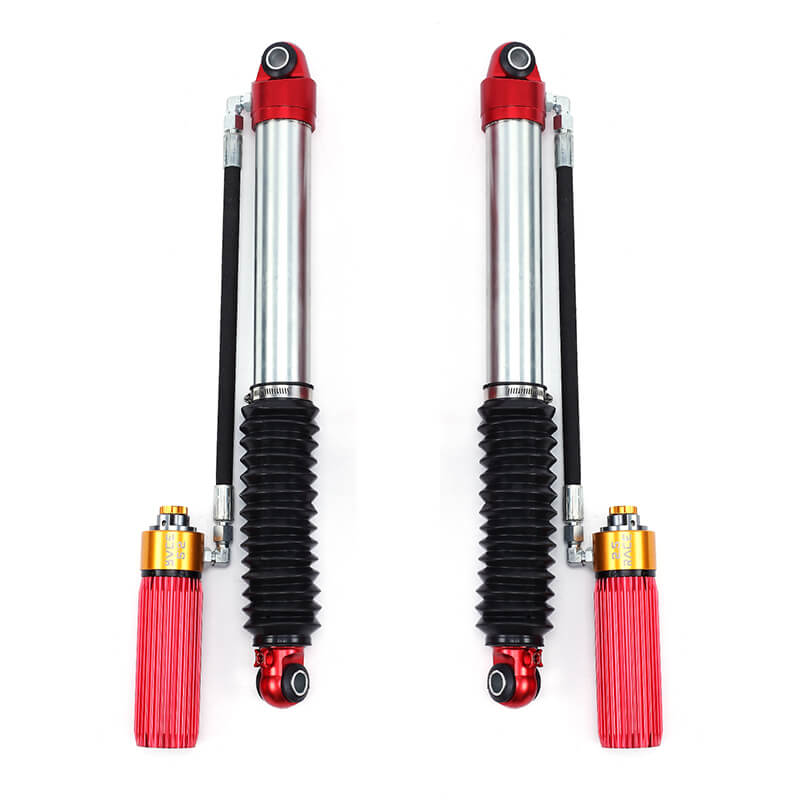

EPIK dual-speed remote reservoir shocks are born for professional off-road racing. High performance never compromises while safety, maneuverability, comfort are guaranteed. Enjoy your off-road driving with our high-end shock absorbers.
Low Noise
EPIK shock absorbers use Germany FUCHS racing oil to reduce the friction noise between oil seal and piston rod and Teflon piston ring to reduce the friction noise between the piston ring and tube inner body. Shocks are properly assembled and each shock will be tested to ensure its low friction force before it leaves the factory.
Heat Dissipation
The remote reservoir is made of T6061 aluminum to ensure its heat dissipation. Even during extreme off-road, the oil temperature will be under 100℃.
Adjustment Design
EPIK shock absorbers have three types of adjustment: Compression adjustment, Compression + Rebound adjustment, Compression + Rebound + Internal bypass to meet the demand of entertainment off-road, long-distance travel, and high-intensity competitions. Internal bypass is suitable for racing and long-distance travel. Damping force during medium travel of the shocks is soft to ensure the comfort of daily driving and slightly bumping roads. The damping force of end travel 3.5cm is enhanced to ensure flying jump and extreme bumping roads to ensure that the shocks will not hit the bottom and protect the suspension, CV joint, and wheels of the vehicle.
High-Performance Coil Springs
Coil springs are made of imported TDCrSi to avoid bending and sinking and to support safety and comfort.
| Tube | Shaft | Piston | Seals | Oil | Reservoir | |
| Material | Steel | Steel | T7075 | / | / | T6061 |
| Specification | 2.25”/2.5” | 22mm | 50/58mm | NOK | Fuchs | 59x160mm |

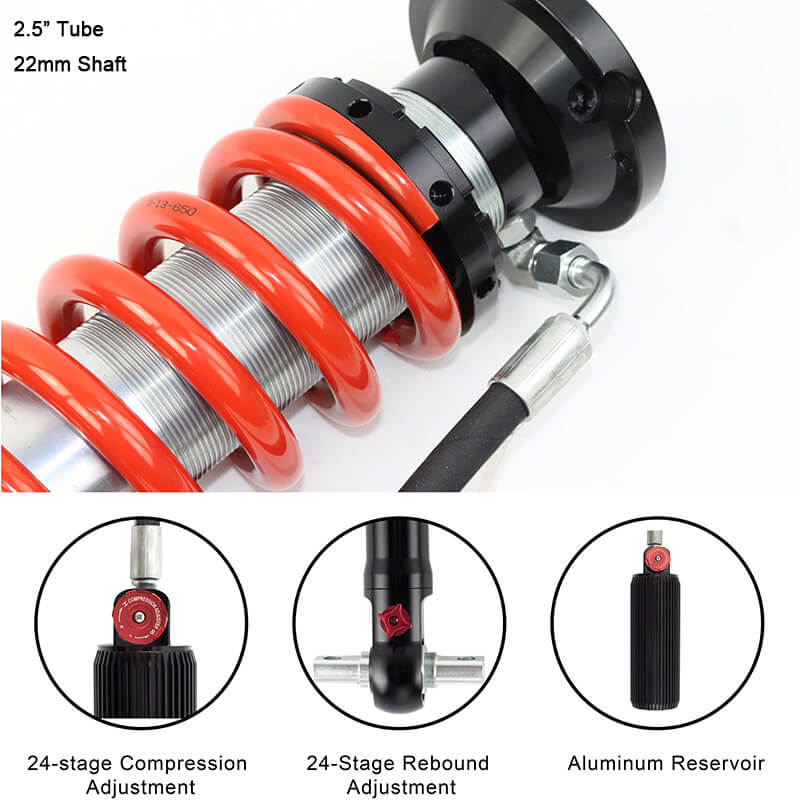

High & low-speed compression adjustment.
24-stage rebound adjustment.

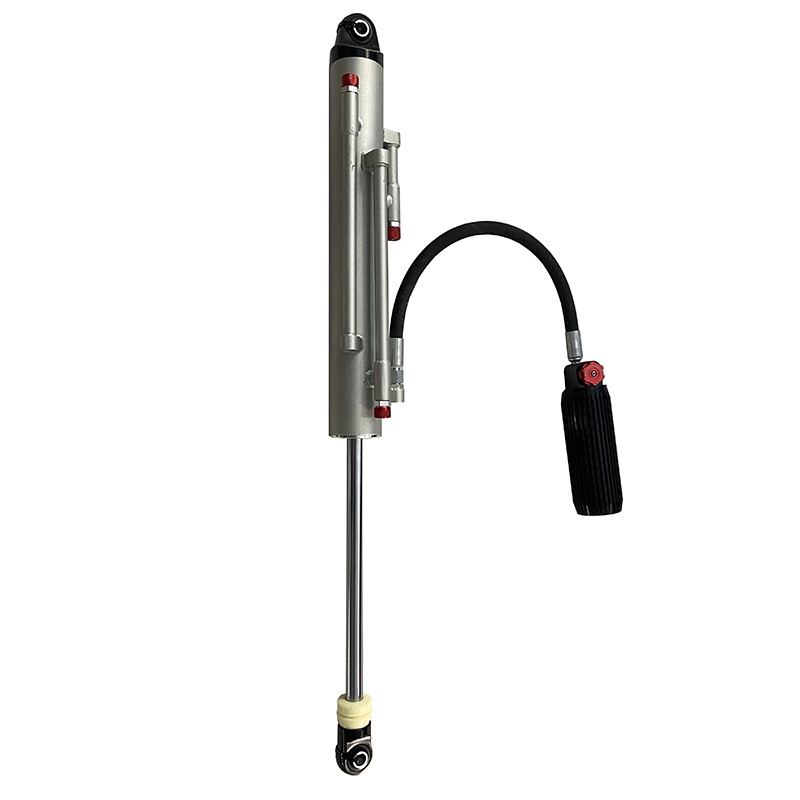

Internal bypass is also optional.
EPIK remote reservoir shock absorbers can be used for Jeep, Ford, Toyota, Nissan, Suzuki, Isuzu, etc.
Warranty: 18 months, 30,000km.
Spare Parts, Process Flow, Energy Consumption, Production Line Configuration
All parts of EPIK shock absorbers are finely processed and assembled accurately to guarantee their performance and durability.
Our MOQ is 5 sets of mixed models for different vehicles.
About delivery time, 3 days for samples and 7-30 days for bulk orders.
Before production, a 30% deposit is needed to start production and the rest shall be paid before delivery.
